Product Details:
Payment & Shipping Terms:
|
| Installation Capacity: | App.110Kw | Fabric Hold By: | Pin/clip/combined |
|---|---|---|---|
| Temperature Of Chamber: | 220 Degree | Heating Source: | Gas/oil/electricity/steam |
| PLC: | Japanese Brand | Chamber Length: | 3 Meters Each |
| Color Of The Machine: | Custoemized | Rail Type: | Horizontal |
| Tension: | Tension Free | Drive Side: | Right Or Left |
| High Light: | stenter machine textile finishing machine,cloth finishing machines |
||

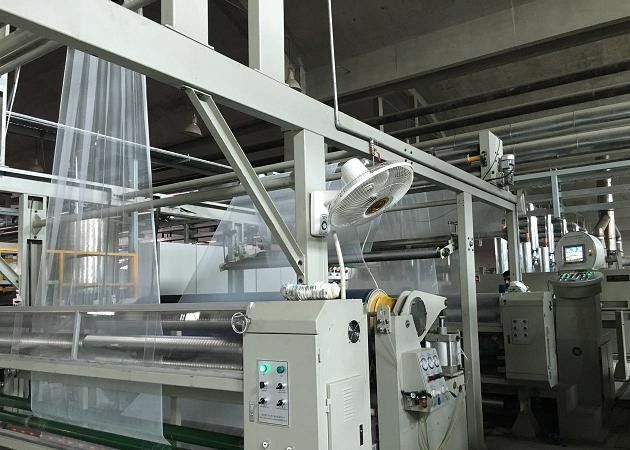

Thermal oil heated Mosquito-net Stenter finishing machine , Without tension
1. Description:
2. Machine applications:
This machine is suitable for, Heat setting of fabric, Chemical Finishing on fabric, especially on mosquito net and Polar fleece fabrics.
3. Process:
Open width entry --- Fabric positioning device ----Infrared center guider ---- Padder --- Tension applicator ---- Infrared center guider ---- Expanding roller (flat-wired type) ---- Lower overfeeding screw expending ---Upper overfeeding --- Edge detecting & four-finger uncurler device--- Pinning-on ---- Chambers for heat setting ---Air cooling --- Pinning-off ---- End section --- Plaiting & batching.
4. Technical specifications:
| Roller width: | 1400-3600mm | Working width: |
1200-3400mm
|
| Heat source: |
nature gas
|
Width adjustment range: |
700-3400mm
|
|
Chambers No.
|
optional | Temperature of chamber: |
100-220℃
|
| Fabric held by: |
clip/pin/combined
|
Air pressure: | above 0.5mpa |
| Overfeed range: |
-10% to 30%
|
Installed power: |
Approx 120Kw
|
5. Feature advantages:
1) Machine is stable, the high running speed can be reached and get high production;
2) Tension-free, high quality mosquito-net can be finished.
