Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting/ Batching Fabric Exit

Fabric streching & setting stenter , Temperature even , Good thermal insulation

1. Working chart :

Open width entry --- Infrared center device ------J-Scray ---- Padder with various tension applicator --- Weft straightner ---- Screw expanding & overfeeding device --- Edge Photocell & uncurler device --- Pinning-on ----  Chambers for heat setting ---Air-jet cooling --- Pinning-off ----- End section --- Plaiting.

2. Functions of stenter machine:

1) Heat setting is done by the stenter for special 3-mesh textile.

2) Width of the 3-mesh textile is controlled.

3) Moisture of the 3-mesh textile is controlled.

4) GSM of the3-mesh textile is controlled.

5) Fabric is dried by the stentering process.

6) Shrinkage property of the 3-mesh textile is controlled.

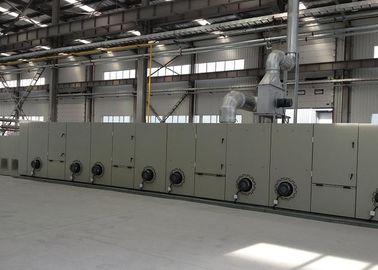

3. Stenter Chamber features:

Each chamber 3 meters long, with twin air system, the frame of chamber is made from 4 mm steel plates. The heat- insulating boards thickness is 120mm, filled with insulating material and silicone rubber strips used for sealing. The bottom of the chambers heat-insulating boards thickness 80mm.

Double filter: Each chamber has double filters; it’s easier for machine maintenance.
