Single Pin Heat Setting Stenter Powder Coated For Mosquito - Net Finishing

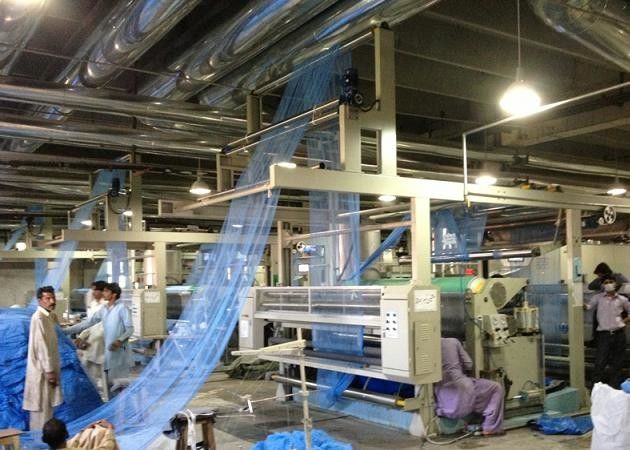

Large Image : Single Pin Heat Setting Stenter Powder Coated For Mosquito - Net Finishing

Product Details:

Place of Origin:	CHINA
Brand Name:	VIROCK
Certification:	ISO9001
Model Number:	VK-280x8

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	wooden case
Delivery Time:	60-90 days
Payment Terms:	L/C, T/T, D/A
Supply Ability:	4 sets per month

Contact Now

Detailed Product Description

Warranty Time:	1 Year From B/L Date	Chamber Door Thickness:	150mm
Max.temp. Of Chamber:	220 Degree	No. Of Exhaust:	2
Height Of Entry Frame:	6m	Pad Mangle Type:	Finishing Type
Color Of The Machine:	Optional	Paiting Type:	Powder Coated
High Light:	cloth finishing machines , stenter finishing machine

Mosquito-net finishing Heat setting Stenter , Single pin , humanism design

1. Description:

This type of Virock stenter is designed to produce Mosquito-net. Together with the pad-mangle, the stenter can apply different special chemicals on the mosquito netting, strech and heat set the net at some temperature.

2. Machine features:

1) With HMI, PLC, inverters, the machine Automatic grade is high.

2) The exhaust pipe is placed inside of the chamber, which prevent the condensed water from the fabric.

3) High quality mosquito-net can be finished due to tension-free processing.

4) The width of each chamber can be adjusted individually.

5) The temperature of each chamber can be set on the HMI easily.

3. Technical specifications:

Roller width:	1400-3600mm	Working width:	1200-3400mm
Heat source:	nature gas /oil / steam / electricity	Width adjustment range:	700-3400mm
Chambers No.	Optional	Temperature of chamber:	100-220℃
Fabric held by:	clip/pin/combined	Air pressure:	above 0.5mpa
Overfeed range:	-10% to 30%	Installation power:	Approx 120Kw
