Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | After-sale Service: | Available |
|---|---|---|---|
| Voltage: | 380V/220V | Suitable For Dye: | Active Dye Or Disperse Dye |
| Fabric Content: | Customization | Machine Hand: | R/L |
| Loop Length: | 1.25-2.5M | Machine Condition: | Brand New |
| High Light: | loop ager machine,textile steamer machine |
||

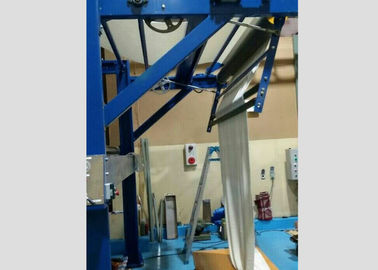

Power saving Long Loop Steamer , Reactive & disperse dye , good insulation
1. Equipment application:
The machine is suitable for ageing and color fixation of woven fabric, knitted fabric and other fabric printing, such as purified cotton, polyester cotton, blending and chemical fiber, etc., Also for dispersing dyestuff baking and color fixation.
2. Equipment process flow:
Open-width fabric-input → loop → ageing → open-width doffing
3. Main specification and parameters:
Machine operation side: left or right side face to fabric entrance.
Machine width: 1800mm~3600mm
Fabric inlet and outlet mode: front inlet and back outlet, front inlet and front outlet, single layer and single fabric, single layer and double fabrics.
Fabric capacity: 140m, 210m, 280m, 350m, 420m
Loop length: 1.25m~2.50m,
Adjusting ratio: 1:2
Machine speed: 5~50m/min
Steam supply pressure≥0.3mpa
Water supply temperature≤60℃
Suitable process: high temperature and low temperature (reactive dyes, engraving dyes, acid dyes, separate dyes)
About 30% energy saving more than similar products
PLC control, humidity control, temperature control, loop length control, time control
