Product Details:
Payment & Shipping Terms:
|
| J-scray Capacity: | 500m Dry Fabric | J-scray Material: | Stainless Steel |
|---|---|---|---|
| Padder Type: | Two/Three-bowl Padder | Padder Tuff Material: | Stainless Steel |
| Rail Type: | Horizontal Rail | Entry Rail Length: | 3m/6m |
| Dryer Quantity: | 2-15 | Pin/clip Type: | Monforts Type |
| High Light: | heat setting stenter,knitted fabric heat setting machine |
||

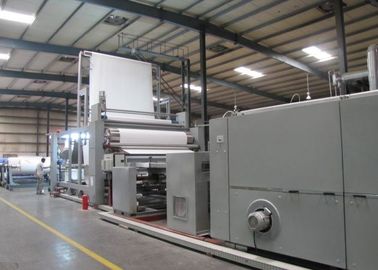

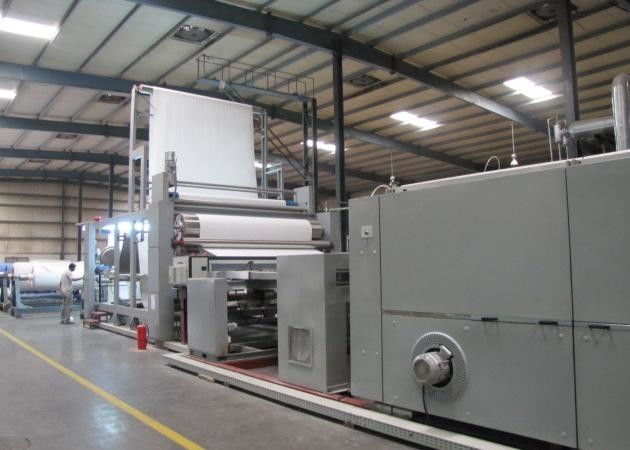

Open width Hot Air Stenter Machine , Advantanced technology , Easy maintenance
1. Main technical data:
| Fabric width | 1200mm-3600mm |
| Roller width | 1400mm-3800mm |
| Padder mangle | Finishing/Dyeing paddle |
| Padder roller quantity | Two, Three |
| Padder roller dia | 400mm |
| Chamber quantity | 2-15 pcs |
| Guide roller diameter | 125mm/150mm |
| Heating media | Thermal oil/Natural gas/Steam/Electricity or any two combined |
| Pinning motor | 0.75 Kw |
| Blower motor quantity in each chamber | 4pcs |
| Exhaust | Two, Three or Four |
2. Working process:
High fabric entry frame ----- J-scray with Cloth guider ---- Padder mangle with tension applicator --- Weft straightner ---- Expanding roller ---- Overfeeding with screw expending ---- Edge detecting device & uncurler device--- Clipping/pinning-on ---- Chambers for setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.
3. Feature advantages:

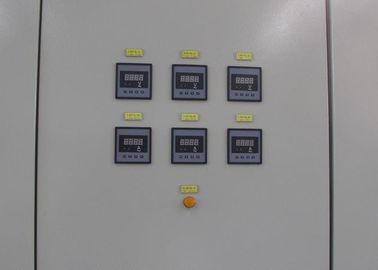

1) Advanced Electrical Control system;all the electrical control components are used the international famous brand, such as Siemen/Mistubishi PLC and HMI, Mistubishi inverter, E+L selvedge tracing device and uncurler, Maxon Gas Burner etc.
2) Equipped with high Efficiency Heat Exchanger or Gas burner ( Maxon, USA), which quickly heat up the chamber temperature to the setting temperature, and greatly reduce the dull time and achieve production efficiency.
3) Special designed inner exhaust pipe enhanced the energy saving.
