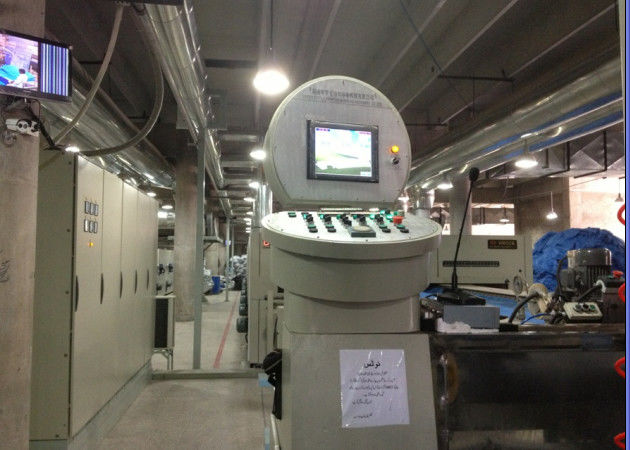

Open Width Fabric Stenter Machine , Advantanced Technology , Stenter Textile Machine

Open width Hot Air Stenter Machine , Advantanced technology , Easy operation

1. Machine Application:

The stenter machine is suitable for any fabric, such as wool, cotton, knitting, chemical fiber, garment fabric, industrial textile, even special military fabrics.

2. Process flow:

1)  for woven fabrics
Feeding frame-> infra-red centering device-> two/three-bowl slant padder-> pneumatic fabric tensioner-> photoelectric weft straightener-> lower overfeeding-> upper overfeeding-> infra-red selvedge-detection-> two/three-finger uncurling-> pinning -> heat-setting chambers-> air cooling-> tension adjustment-> water cooling-> plaiter/batcher

2) for knitted fabrics
Feeding frame-> infra-red centering-> two-bowl oblique padder-> pneumatic fabric tensioner-> four-roll weft straightener-> lower overfeeding-> mechanical weft straightener-> bow roller expanding-> upper overfeeding-> infra-red selvedge-detection-> three-finger uncurling and plate uncurling -> brush overfeeding-> pinning -> extended rail-> heat-setting chambers-> air cooling-> tension adjustment-> plaiter/mini batcher

3. Standard Features:

1) Width Adjustment System:

(A)Collective adjustment mode: The width can be adjusted through the first one or two spindles driven by individual motor at the entry of chamber, and the rest is driven by the long shaft.
(B)Individual adjustment mode:each spindle is driven by the individual motor.

2) Hot Air Circulation System

The hot air fed into upper and lower nozzles is driver by two fans individually.The air volume for each layer can be adjusted according to the actual requirement.

3) Rail

The pin & clip assembly moving in stable and oil-free condition the graphite gliding strips which fixed with the rail.
