Maganetic Rotary Screen Printing Machine HMI Interter Controlled Individual Driving

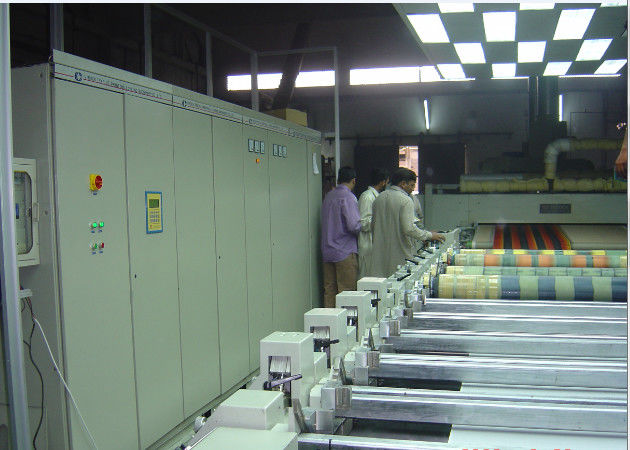

Large Image : Maganetic Rotary Screen Printing Machine HMI Interter Controlled Individual Driving

Product Details:

Place of Origin:	CHINA
Brand Name:	VIROCK
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	wooden case
Delivery Time:	60-90 days
Payment Terms:	L/C, T/T
Supply Ability:	4 sets per month

Contact Now

Detailed Product Description

Design Working Speed:	10-80m/min	Dryer Quantity:	As Required
Max. Color Sets:	16 Sets	Driving Mode:	Individual Driving
Brand Of The Blanket:	Habasit	Material Of The Convey Belt:	Teflon
High Light:	fabric screen printing machine , cloth printing machine

Maganetic Rotary Screen Printing Machine, HMI interter controlled , Individual driving

1. Application:

Rotary screen printing is a kind of printing method that uses a scraper to make the color pulp in the circular net on the fabric under pressure.The machine usually consists of a cloth feeding device, printing unit, drying chamber, and exit device, totally four parts.

2. Process:

Full width cloth feeding --- Printing --- Drying --- Plaiting & cropping.

3. Main features:

1) Open-type screen head. The screen is easy to be installed and dismantled.

2) Good rigidity magnetic table. The pressure of magnet rod is unlimited adjustable, which suitable for different weight fabrics.

3) Servo motor driving individually,register accurately and reliably.

4) Auto inspect and display malfunction, guide and check to deal with the malfunction quickly.

5) The friendly HMI operation system.

6) Screen frame can be lift up on the single side, which is convenient to clean and maintain.

7) High quality mechnical parts and electrical elements which purchased from the global market.

8) Residual paste returned device.

4.Main parameters:

Production model	VK608
Printing type	Magnetic/squeegee/combination
Nominal width	180,200,220,240,260,280,300,320
Effective printing width (mm)	A series standard 1620,1850,2050,2250,2450,2650,2850,3050
Effective printing width (mm)	B series standard 1620,1850,2000,2200,2400,2600,2800,3000
Standard colors	4.6.8.12.16
Repeat size (mm)	640,820,914,1018
Printing varieties	Knitted, woven fabric processing
