Product Details:
Payment & Shipping Terms:
|
| Patter Repeat Length: | 640,820,914,1018 | Individual Driving Motor Type: | Servo Motor |
|---|---|---|---|
| Printing Woking Width: | 1200mm To 3000mm | Dryer No.: | Optional |
| Heating Source: | Gas/oil/steam | No. Of Exhaust: | Optional |
| High Light: | textile screen printing machine,cloth printing machine |
||

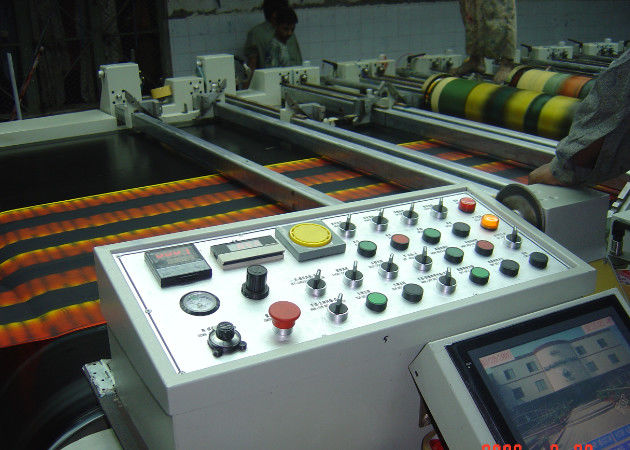

User-friendly design Rotary Screen Printing Machine , individual driving
The product is the Magnetic rod style rotary screen printing machine,suitable for knitted, Woven fabric.For the high quality printing production from the Min.width to Max.width.
2. main parameters:
| NO. | Description | Details |
| 1 | Machine direction | right hand machine(face to feeding transmission on right side ) |
| 2 | Machine nominal width | 1800-3400mm(Max. process fabric width 3200mm ) |
| 3 | Cloth speed | 1~100m/min (Designed speed1~110 m/min) |
| 4 | Screen cylinder repeat | 640mm-914mm-1018mm |
| 5 | Drying heating source | conducted oil or steam heating |
| 6 | Drying method | powerful spraying wind, three-layer hot air drying |
| 7 | Chamber working temperature | 220℃ |
| 8 | Transmission mode | screen heads servo independent transmission |
| 9 | Printing mode | open type magnetic bar printing |
3. Machine structure:
High quality box-type block structure, 6 colors/section,total 3 sections, 12 colors, decreasing machine span, increasing mechanical strength. Under frame adopts international B-type shape steel to weld. Improving soundness and stability of complete machine.
Main drive: Standard reduction box drive, high quality of printing conduction band. Surface of driving roller grind texturing treatment and plate nickel phosphorus. Ensure high quality printing. Simple mechanical structure makes the maintanence very convenient.
