Product Details:
Payment & Shipping Terms:
|
| Blanket Thickness: | 2.5m M | Fabric Feeding Way: | Trolley/roller |
|---|---|---|---|
| Working Speed: | 10-80m/min | Blanket Material: | Rubber |
| Convey Belt Material: | Teflon | Dryer Quantity: | As Required |
| High Light: | textile screen printing machine,cloth printing machine |
||

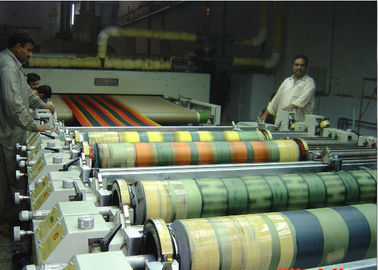

High productivity Rotary Screen Printing Machine , Open - type screen head
2. Machine Features:
1) Open screen head, easy to maintanence.
2) Each screen driving by individual servo motor.
3) Suitable for various pattern repeat.
4) The printing color sets can be 4/8/12/16.
3. Main specifications:
| NO. | Description | Details |
| 1 | Machine direction | right hand machine(face to feeding transmission on right side ) |
| 2 | Machine nominal width | 1800-3400mm(Max. process fabric width 3200mm ) |
| 3 | Cloth speed | 1~100m/min (Designed speed1~110 m/min) |
| 4 | Screen cylinder repeat | 640mm-914mm-1018mm |
| 5 | Drying heating source | conducted oil or steam heating |
| 6 | Drying method | powerful spraying wind, three-layer hot air drying |
| 7 | Chamber working temperature | 220℃ |
| 8 | Transmission mode | screen heads servo independent transmission |
| 9 | Printing mode | open type magnetic bar printing |
