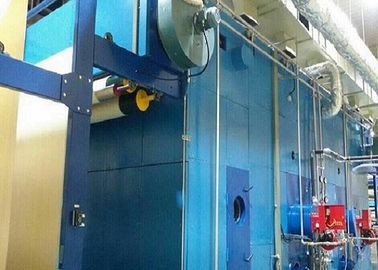

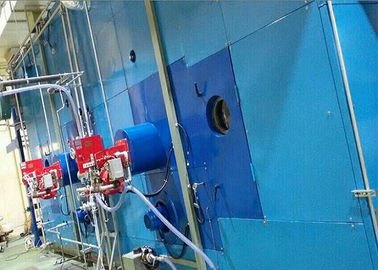

Gas Heated Loop Steamer Machine Printing Color Fixed For Reactive And Disperse Dye

Gas heated Loop Steamer Machine, Printing color fixed , Reactive and disperse dye

1. Applications:

This machine is suitable for steaming cotton, polyester, chemical fibres, blended woven fabrics, and knitted fabrics after being printed. The function of this machine in the whole technological process is to transfer the dyes of colour paste into fibre through steaming and to achieve color fixation. Good for pigment, reactive and disperse dye. Its effect causes a direct impact to the glaze and vividness of the fabric after being printed.

2. Process:

Fabric feeding --- Steaming --- Exit with plaiting.

3. Specifications:

1) Machine hand: left hand or right hand

2) Fabric content: 150-350m(content of single width,single layer)

3) Loop length: 1.25~2.5km

4) Max fabric speed: 40~50m/min.

5) Heating source:oil,natural gas,city gas,superheated steam. Electricity.

6) Medium of temperature and steaming:

Saturated steam: 100℃

Low temperature superheated steam: >100℃~115℃

High temperature superheated steam: 150℃~185℃ and above 185℃.

Dry & hot air: 150℃~185℃ and above 185℃.

7) Steaming time:

According to fabric speed and fabric content: 1.75~35 min

2.1~42min(fabric content:210m,fabric speed: 5~50m/min)

8) Fabric in & out method:

Fabric in & out device placed in front and back sides or the same sides. Applicable for single width,single layer,single width,double layers,double width double layers,woven fabric and knitted fabric. No Sublimation and pollution when absorbing dye, single width double layers and double width double layers will achieve only knitted and woven fabric without crimping.

9) Transmission method: frequency conversion motor.

10) Suitable fabric:

Steaming fixation and drying of natural fiber,synthetic fiber,chemical fiber and blended woven,knitted and non-woven fabric, gram weight of each square meter : 56~450g/m2

11) Suitable dye:

Direct dye,reduction dye,active dye,disperse dye,acid sundries,metal chrome dye,coating and salt tsuen dye etc.

12) Min. steam pressure:0.3 Mpa

13) Max. allowable temperature of condensate water: 60℃
