Product Details:
Payment & Shipping Terms:
|
| Padder Mangle Quantity: | 1/2 Sets | Padder Roller Dia.: | 400mm |
|---|---|---|---|
| Overfeeding Range: | -10% To 80% | Exhaust Motor Power: | 5.5Kw |
| Machine Drive: | Single/double Drive | Guide Roller Dia.: | 125mm |
| Packing Standard: | Export Packing | Pin/clip Type: | Monforts Type |
| High Light: | fabric finishing machine,cloth finishing machines |
||
Friendly HMI Textile Finishing Machine , Even temperature , Multi-functional
1. Product uses

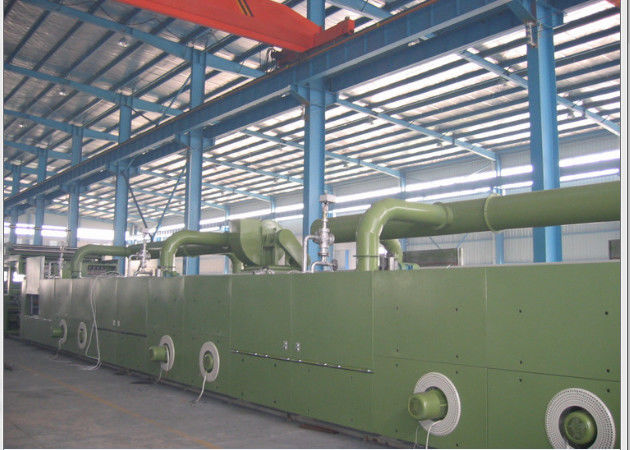

The Stenter Machine is used for cotton, chemical fiber and blended knitted and woven fabric open width padding auxiliaries, drying and styling process.
2. Technical parameters:
| Origin | China |
| Main Matching Fabric | open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers |
| Heat source | natural gas/circulating conduction oil/steam |
| Stentering type | hot air circulating |
| Holding type | pin+clip |
| Chain type | pitch 60mm,oil-free lubricated |
| Rail type | carbon steel+polymer wearing strip |
| Working type | horizontal return chain |
| Working width | 1000-3600mm |
| Working speed | 5-60m/min |
| Chamber Nos | 2-15 |
| Chamber length | 3000mm |
| Insulating board thickness | 150mm |
| Temperature of chamber | 100~230ºC |
| Pinning & brush overfeed ratio | -20%~40% |
| Temp.& Breadth adjustment type | separately adjust on each chamber |
| Capacity of machine | 61.5kw+22.75kw*chamber*Nos |
| Standard machine power supply | 380V/3P/50HZ |
| Control power supply | 220V/380V |
| Steam specification of steam box | 3-6kg/cm² |
| Steam comsuption of steam box | 100-150kg/h |
| Compressed air | 0.35-0.6MPa |
| Total weight | 14T+5.8T/chamber*Nos |
3. Main Characteristics:
1) Benefit from the special designed nozzle, the air volume in the chamber is big and the temperature is even, which is suitable for heavy knits.
2) The required shrinkage can be reached because of high-efficient overfeeding unit.
2) Different temperature in each chamber can be set individually.
3) Width in each chamber can be adjusted separately.
4. Package & Delivery
(1) We use export standard package, wooden case to delivery machines, adopt necessary measures on moistureproof and anti-corrosion from air and sea.
(2) Packaging in all consideration to ensure machines are received in good state.
Customer satisfaction is our biggest goal.
(3) Virock textile finishing machines will delivery in 60 days after advanced payment received.
5. Payment
(1) Accepted Payment Type: T/T, L/C, Cash
(2) Accepted Payment Currency: USD, EUR, RMB
(3) Advanced payment: 15~30% as deposit.
