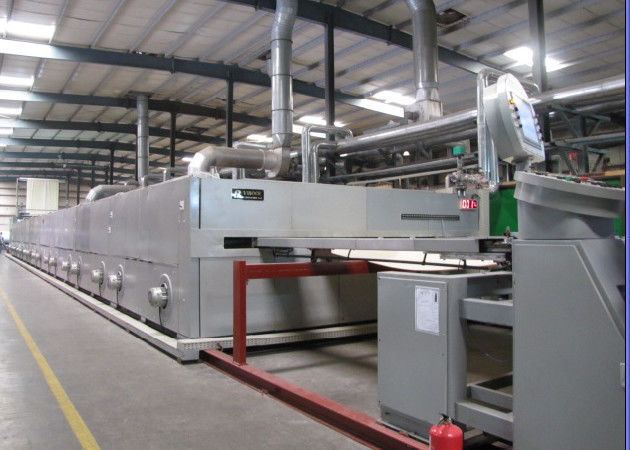

Fabric Finishing Hot Air Stenter , Finishing Machines Textile With Long Service Life

Fabric Finishing Hot Air Stenter , Finishing Machines Textile With Long Service Life
Fabric Finishing Hot Air Stenter , Finishing Machines Textile With Long Service Life Fabric Finishing Hot Air Stenter , Finishing Machines Textile With Long Service Life

Large Image :  Fabric Finishing Hot Air Stenter , Finishing Machines Textile With Long Service Life

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK-NM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Wooden case
Delivery Time: in 90 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 4 sets per month
Detailed Product Description
Chamber Quantity: As Required Heating Source: Oil/gas/electricity Etc.
Suitable For: Woven Fabric Working Width: 1200mm-3600mm
Roller Width: 1400mm-3800mm Padder Type: Finishing Stenter
Padder Roller Diameter: 400mm Padder Drive Capacity: 15Kw
High Light:

heat setting stenter

,

knitted fabric heat setting machine

Fabric finishing Hot Air Stenter Machine , Automatic operation , Long service life​







1. Working process:



High fabric entry frame ----- J-scray with Cloth guider ---- Padder mangle with tension applicator --- Weft straightner ---- Expanding roller ---- Overfeeding with screw expending ----  Edge detecting device & uncurler device--- Clipping/pinning-on ---- Chambers for setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.





2. Machine automation feature:

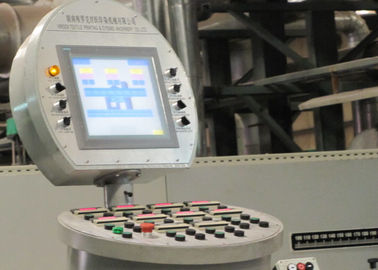

The VK-NM model stenter is a fully automated and complex machine with the most modern PLC control system which ensures optimum production from the Stenter. The level of automation can be designed for specific requirements of individual customers. Typical level of automation to access and control basic machine parameters, functions and displays using PLC with Graphic Colour Screen Display of various functions on a Visual Display Unit/Touch Screen can be as follows:

1) Chamber temperature setting & control,

2) Overfeeding rate control,

3) Machine running speed,

4) Chamber width indication and control,

5) Exhaust moisture control in the chamber,

6) Squeezing pressure

7) Machine alarm record

etc.





3. Main technical data:



Machine roller width: 1400-3800mm Fabric working width:

1200-3600mm



Heating source:

nature gas / oil /

electricity / steam



Width adjustment range:

700-3600mm



Chambers quantity.



2-10 Temperature range of chambers:

100-230℃



Fabric held by:

clip/pin/combined



Air pressure: above 0.5mpa
Overfeed range:

-10% to 30%



Installed power:

Approx 120Kw
