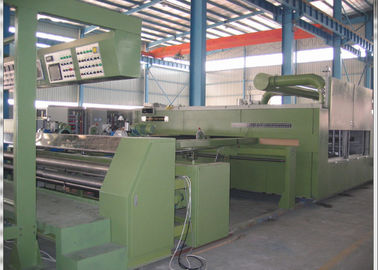

Environmental Friendly Hot Air Stenter Machine Installation Power 150Kw

Enviromental-friendly Hot Air Stenter Machine , PLC controlled , Humanization design

1. Machine Application:

The VIROCK Stenter is enhanced and refined with the European Technology and the technical advice and feedback from the end users. It is designed to match the requirements of various kinds of fabric., from fabric feeding to overfeed, from stentering to cooling and to fabric exit. It is done just by adjusting the mechanical and electrical device on the machine, Various options are available to fulfill different requirements.


2. Technical parameters:

3. Standard Features:

1) Width Adjustment System:

(A) Collective adjustment mode: The width can be adjusted through the first one or two spindles driven by individual motor at the entry of chamber, and the rest is driven by the long shaft.
(B) Individual adjustment mode:each spindle is driven by the individual motor.

2) Hot Air Circulation System

The hot air fed into upper and lower nozzles is driver by two fans individually.The air volume for each layer can be adjusted according to the actual requirement.

3) Rail

The pin & clip assembly moving in stable and oil-free condition the graphite gliding strips which fixed with the rail.

4. Machine advantages:

1) The temperature is even. The temperature difference in each chamber is 2 degree.

2) The machine has high production. The air-volumn in each chamber is big, and the machine running speed is high.

3) Energy-saved: Power consumption is less.

4) Each chamber has individual temperature control device;

5) All the driving system is controlled by inverter, easy to operation;

6) Efficient kinds of nozzles and radiators in chambers;

7) Special designed chamber doors for easily maintenance;

8) Each chamber equipped with individual width adjustment device.
