Friendly HMI Fabric Stenter Machine 125mm Guide Roller Monforts Type Pin / Clip

Good quality Heat Setting Stenter for sales
I'm Online Chat Now

Friendly HMI Fabric Stenter Machine 125mm Guide Roller Monforts Type Pin / Clip

China Friendly HMI Fabric Stenter Machine 125mm Guide Roller Monforts Type Pin / Clip supplier

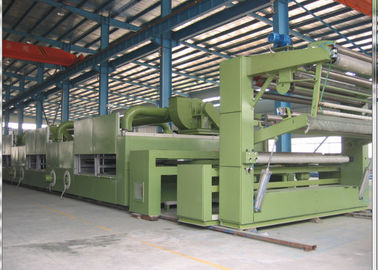

Large Image :  Friendly HMI Fabric Stenter Machine 125mm Guide Roller Monforts Type Pin / Clip

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK-NM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Wooden case
Delivery Time: in 90 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 4 sets per month
Contact Now
Detailed Product Description
Padder Type: Finishing/dyeing Padder Cooling Type: Air/water Cooling
Overfeeding Range: -10% To 80% Exhaust No.: As Required
Exhasut Controlled By: Inverter Guide Roller Dia.: 125mm
Packing Standard: Export Packing Pin/clip Type: Monforts Type

Friendly HMI Fabric stenter Machine , Even temperature , Multi-functional





1. Product uses

The  stenter is suitable for various kinds of high quality fabric finishing.



2. Technical parameters:

Machine hand Left or right hand
Nominal width 1400--3800mm
Effective width 650--(w-200)mm
Design speed Max.150m/min
Transmission mode Multi unit synchronous AC motor frequency converter speed drive, a cloth area TV monitor, touch screen computer control of process parameters.
Overfeed A cloth feeding range -10%-+30%
  The cloth feeding range -10%-+10%
  The needle brush over feed range -10%-+30%
  A cloth feeding range -10%-+30%
A method of cloth Pin / clip / combined
Drying room temperature 230C(max)
The pressure of compressed air 0.4-0.5MPa
Size and shape Long (17606+N*3000) mm/ (+2200) mm/ high 4000mm wide
Installed capacity App. 150 KW
The heat source Thermal oil / gas / electric / steam









3. Main Characteristics:

1) Benefit from the special designed nozzle, the air volume in the chamber is big and the temperature is even, which is suitable for heavy knits.

2) The required shrinkage can be reached because of high-efficient overfeeding unit.

2) Different temperature in each chamber can be set individually.

3) Width in each chamber can be adjusted separately.





4. Package & Delivery
(1) We use export standard package, wooden case to delivery machines, adopt necessary measures on moistureproof and anti-corrosion from air and sea.

(2) Packaging in all consideration to ensure machines are received in good state.

Customer satisfaction is our biggest goal.

(3) Virock textile finishing machines will delivery in 60 days after advanced payment received.




5. Payment
(1) Accepted Payment Type: T/T, L/C, Cash

(2) Accepted Payment Currency: USD, EUR, RMB

(3) Advanced payment: 15~30% as deposit.
