Advanced Woven Fabric Finishing Machine , Stenter Textile Machine 15KW Padder Motor

Good quality Heat Setting Stenter for sales
I'm Online Chat Now

Advanced Woven Fabric Finishing Machine , Stenter Textile Machine 15KW Padder Motor

China Advanced Woven Fabric Finishing Machine ,  Stenter Textile Machine 15KW Padder Motor supplier

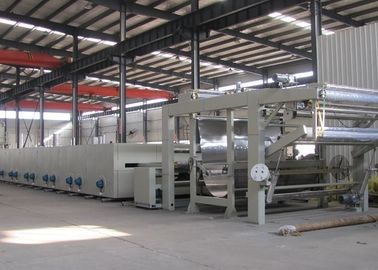

Large Image :  Advanced Woven Fabric Finishing Machine , Stenter Textile Machine 15KW Padder Motor

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: as required
Contact Now
Detailed Product Description
Normal Width: 1400-3800mm Dryer Quantity: Optional
Chamber Door Open Way: Manually Padder Type: Slant Padder
Chemical Tuff Size: 1 L Padder Motor Capacity: 15Kw
Warranty: 1 Year From B/L Exit Type: Plaiting/Batching

Advanced woven fabric stenter Machine , User - friendly design , good insulation







1. Main technical data:

Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm/150mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75 Kw
Blower motor quantity in each chamber 4pcs
Exhaust Two, Three or Four





2. Working Procedure of Stenter Machine

open-width fabric entry→ spreading→infrared centering→padder→ weft straightener →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding



3. Stenter features:

1) ENERGY SAVING

Special insulation panelling of high density material for low heat radiation, 150 mm thick insulation panels.

Thermal Insulation
High Density insulation of 150 mm thickness for low heat radiation Ensuring proper sealing at all the chambers accesses, at entry and exits.

 BENEFITS

High productivity.Easy maintenance.Optimum utilization of energy.Very low radiation loss.

WIDTH ADJUSTMENT

2) Non lubricated width spindle driven by separate motor.

BENEFITS

Any desired width can be adjusted automatically for entire machine from control desk.Digital width indication at the inlet, outlet area and mechanical width counter meter at each width spindle.Digital width indication at the inlet and outlet area .


3) INTEGRATED EXHAUST SYSTEM

Integral and External exhaust duct is supplied as per requirementIntegral duct minimises oil condensation chances and easy to clean; space saving constructionControl on hot air exhaust losses is possibleChamber wise exhaust air control is possible due to separate manually operated damper arrangementInverter driven direct drive exhaust fan is provided for speed control as per process requirement
