|Design Speed:||10-150m/min||Max. Chamber Temperature:||230 Degree|
|Quantity Of Dryer:||Optional||Padder Quantity:||One/double|
|Rail Type:||Non-lubrication Rail||Overfeeding Rate:||-10%-30%|
|Dryer Quantity:||2-15||Fabric Carry By:||Pin/clip/pin&clip|
fabric stenter machine,
knitted fabric heat setting machine

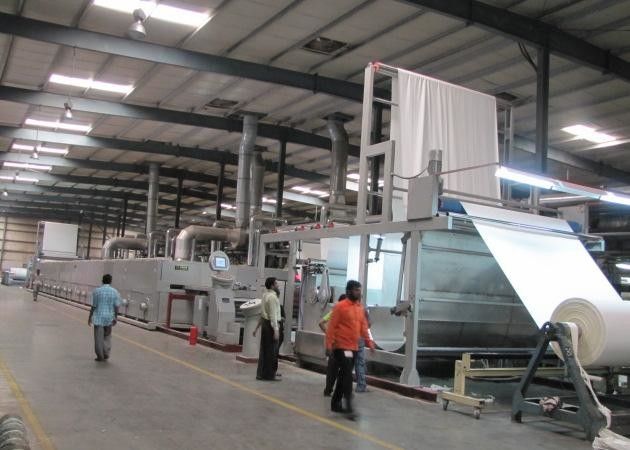

Woven finishing Hot Air Stenter Machine , High automation , Easy operation
1. Main technical data:
|Padder mangle||Finishing/Dyeing paddle|
|Padder roller quantity||Two, Three|
|Padder roller dia||400mm|
|Chamber quantity||2-15 pcs|
|Guide roller diameter||125mm|
|Heating media||Thermal oil/Natural gas/Steam/Electricity or any two combined|
|Blower motor capacity||5.5Kw|
|Exhaust||Two, Three or Four|

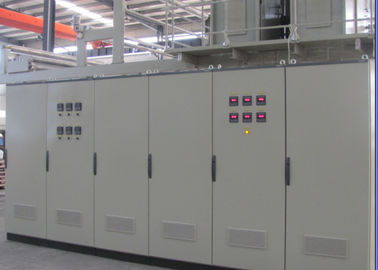

2. Machine automation feature:
Imported Programmable logic range control (PLC):
● All fabric transport drives with frequency-controlled AC-drives.
● Control and monitoring instruments in the inlet and outlet area.
● Set-up automation for the operating parameters: production speed, fabric feeding, fabric overfeeding, stretching device, selvedge tensioning and air circulation, exhaust etc.
All deviations from set parameters are constantly measured and recorded. The system can be interconnected to a host computer or to other PLC for networking or data monitoring. Remote access of the control system is possible through use of a modem connected to the PLC.
3. Machine flow-chat:
Open-width fabric entry --- Cloth guider ---- J-scray ---- Padder mangle --- Various tension applicator --- Weft straightner ---- Expanding roller ---- Lower overfeeding --- Screw expending ---Upper overfeeding --- Pleva or E+L Photocell device & Two-finger edge uncurler device--- Clipping/pinning-on ---- Chambers for heat setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.
