|Brand Of Valve:||RTK Or Others||Quantity Of Dryer:||Optional|
|Automatic Grade:||Automatic||Installation Power:||App. 120Kw|
|Design Speed:||150m/min||Chamber Length:||3m/4m Each|
|HMI Brand:||Siemens/Omron||PLC Brand:||Siemens/Mitsubishi|
fabric stenter machine,
heat setting stenter

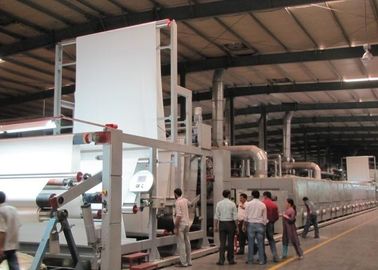

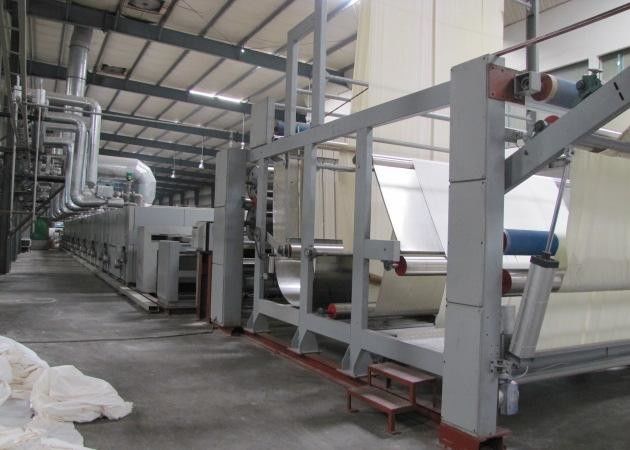

Thermal oil heated fabric Hot Air finishing Stenter , Get temperature shortly
1. Machine working process:
Open-width fabric entry frame --- Infrared center device/Cloth guider ---- J-scray ---- Padder mangle with tension applicator --- Auto weft straightner ---- Expanding roller ---- Lower overfeeding --- Screw expending ---Upper overfeeding --- Edge guider & Edge uncurler device--- Clipping/pinning-on ---- Chambers for setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.
2. Feature advantages:
1) A limit switch is used. The machine will stop immediately when the fabric fails to be depinned and touch the rod of the limit switch.
2) The air-volumn in the chambers is big, the machine running speed is high.
3) Width-regulator: Can be controlled digitally on the computer. The width in each chamber can be regulated separately by individually motors. Limit switches also used to control the width regulation limitation.
