|Power:||App.120Kw||Machine Design Speed:||10-100m/min|
|Machine Condition:||Brand New||Automatic Grade:||Auto|
|No. Of Chamber:||As Required||Warranty:||1 Year|
|Rail Type:||Horizontal||Fabric Exit:||Plaiting|
|Heating Source:||Oil/gas/electricity/steam||Cooling Way:||Air-jet|
stenter textile machine,
heat setting stenter

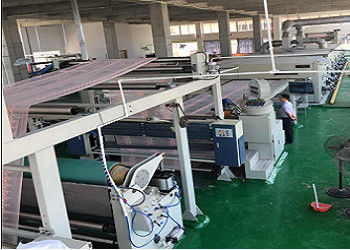

Pin holding Lace Fabric Stenter machine , Lace & pure silk streching finishing
* The purpose of the stenter machine is to stretch or stenter fabrics to bring the length and width to pre determined dimensions, and also it is used for applying finishing chemicals.
2. Machine applications:
* Equipped with padder mangle, the stenter can carry out other treatments like squeezing and resin padding.
* The machine is suitable for heat setting, Chemical Finishing on lace fabric and applicable to extending Bud silk which is 50-400gsm.
3. Technical data:
|Machine width:||1400-3800mm||Working width:||
nature gas / oil /
electricity / steam
|Width adjustment range:||
|2-10||Temperature of chamber:||
|Fabric held by:||
|Air pressure:||above 0.5mpa|
-10% to 30%
4. The main functions of the stenter:
A. Heat setting and fix different kinds of textiles.
B. Control the fabric width.
C. Finishing chemical applying on various types of textile.
D. Dry fabrics.
E. Control the GSM of the textile.
5. Technical Flow:
Plait Entry -- 2-Roller slant Padder -- Photoelectric Weft Strangtener – Overfeeding -- Tridactylous Edge Spreader, Infrared Edge Sensor -- Pin or Clip or Combied Pin-Clip -- Stentering and Drying in the 8 Drying Chambers – Air-Jet Cooling -- Cooling Roller Cooling -- Swing Outlet.
6. Feature advantages:
1) The temperature is even. The temperature difference in each chamber is 2 degree.
2) The machine has high production. The air-volumn in each chamber is big, and the machine running speed is high.
3) High quality Bud silk can be finished: The fabric is good hand-touch feeling.
4) Energy-saved: Power consumption is less.
