|Rail Lubirication Type:||Non-lubrication||Drive Mode:||Full Inverter Controlled|
|No. Of Exhaust:||2/3 Sets||Entry Rail Length:||3m/6m|
|Padder Rubber Hardness:||Optional||Padder Roller Diameter:||400mm|
|Padder Type:||Slant Finishing||Exit Type:||Plaiting/Batching|
fabric stenter machine,
knitted fabric heat setting machine

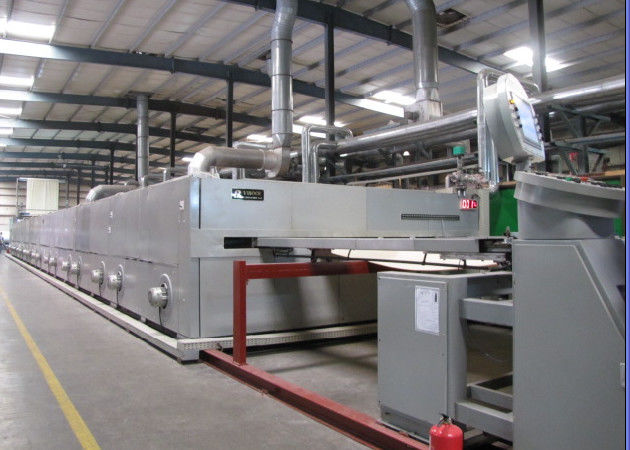

High - efficiency Hot air stenter machine , good thermal insulation , energy saving
1. Functions of Stenter Machines
1) Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric.
2) Width of the fabric is controlled by the stenter.
3) Finishing chemical apply on fabric by the stenter.
4) Loop of the knit fabric is controlled.
5) Moisture of the fabric is controlled by the stenter.
6) Spirility controlled by the stenter.
7) GSM of the fabric is controlled by stenter.
8) Fabric is dried by the stentering process.
9) Shrinkage property of the fabric is controlled.
10) Curing treatment for resin, water repellent fabric is done by the stenter
2. Main technical data:
|Padder mangle||Finishing/Dyeing paddle|
|Padder roller quantity||Two, Three|
|Padder roller dia||400mm|
|Chamber quantity||2-15 pcs|
|Guide roller diameter||125mm/150mm|
|Heating media||Thermal oil/Natural gas/Steam/Electricity or any two combined|
|Pinning motor||0.75 Kw|
|Blower motor quantity in each chamber||4pcs|
|Exhaust||Two, Three or Four|
3. Components of Stenter Machine:
Photoelectric Weft straightner
4. Working Procedure of Stenter Machine
open-width fabric entry→ spreading→infrared centering→padder→ weft straightener →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding
5.. Features of the machine:
1) Permit high production speeds with high efficient chambers.
2) By virtues of advanced PLC system and computerized control with interface operation, the machine is easy to be operated.
3) The best design of airing system makes it possible to adopt the air circulation quantity penetrates to the fabric uniformly, the handle of fabric and softness can be increased.
4) Thanks to the exhaust-air inverter control system, the energy can be saved and the high production can be get with efficient cost.
5) Each rail width of setting chamber can be adjusted by seperated driving motor at the same time or independently at different time.
