|Installation Power.:||Depends On The Specifications||Main Drive Power:||18.5Kw/22Kw|
|Fabric Working Width:||As Required||Machine Color:||Optional|
|Heating Source:||Gas/oil/steam/eletricity||Rail Length:||Custom Tailor|
|Rail Type:||Horizontal||Cooling Type:||Air-jet Cooling|
fabric stenter machine,
heat setting stenter

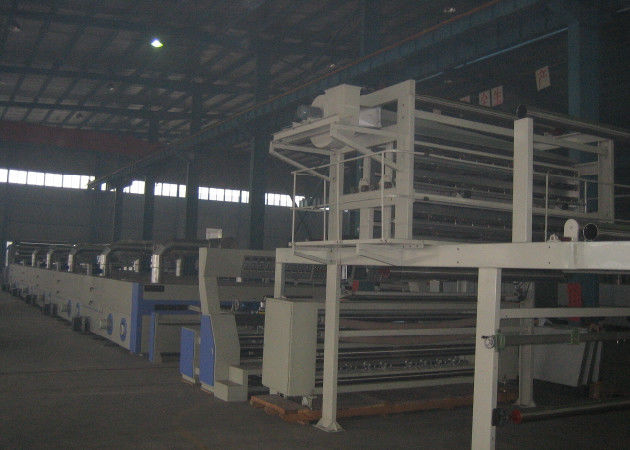

High automation Hot air stenter machine , Pre-dryer , Even temperature
1. Stenter Application:
Stenter machine is electrical machines used in textile industry for stretching or stentering thin fabrics such as muslin. Stenter electrical machines are called as stenter hook. In stenter open compactor fabrics enter. Here Cotton fabric shrinks widthwise & weft are distorted due to bleeching & dyeing process.
2. The parts of stenter electrical machines are given bellow-
Stenter Machine Parts
Heat recovery unit
Edge controller device
Roller of Attraction
3. Stenter Machine Process:
Stenter machine process are listed here –
Fabric inlet: Fabric after mercerizing, after dyeing even some time after bleaching & peach come to stenter for different application. Fabric roll is feed into inlet of stenter machine which passes over few rollers & guider to come in chemical tank.
Stenter Machine Fabric inlet
Chemical mixing tank: Chemical is mixed according to required for processing in the machine. Few typical recipes are shown.
Chemical tank: Here according to finish required from the mixing tank chemical comes to bath for padding. Here there is three bowl padding system followed by squeezing. Pressure is around 2.5 to 3 bar.
Skewing & bowing control unit (bianco): In this unit both bowing & skewing is controlled by means of mechanical application. Here there are two types of roller. The bend roller is called bowing roller & the number of bowing roller is 3. That can move upward & downward direction. When the bowing is in downward direction then the roller moves upward to control it. There are also three parallel rollers which is called skewing roller. The amount of skew allowable is settled in the control panel. According to this the roller moved forward & backward to control skewing. If left side is moves forward in the fabric then in skewing roller moves backward to control this. This bowing & skewing is measured by sensor which is shown in the panel board. It is done in the entry level.
