Humanized Design Stenter Textile Machine , Textile Finishing Machine High Evaporation

Certification
Good quality Heat Setting Stenter for sales
I'm Online Chat Now

Humanized Design Stenter Textile Machine , Textile Finishing Machine High Evaporation

China Humanized Design Stenter Textile Machine , Textile Finishing Machine High Evaporation supplier

Large Image :  Humanized Design Stenter Textile Machine , Textile Finishing Machine High Evaporation

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK - NB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: as required
Contact Now
Detailed Product Description
Machine Max. Normal Width: 3800mm Condition: Brand New
Machine Automatic: PLC Controlled Heating Way: As Required
Guarranty: One Year From B/L Date Machine Design Speed: 150m/min
Dimension: According To The Design PLC Brand: Imported (optional)

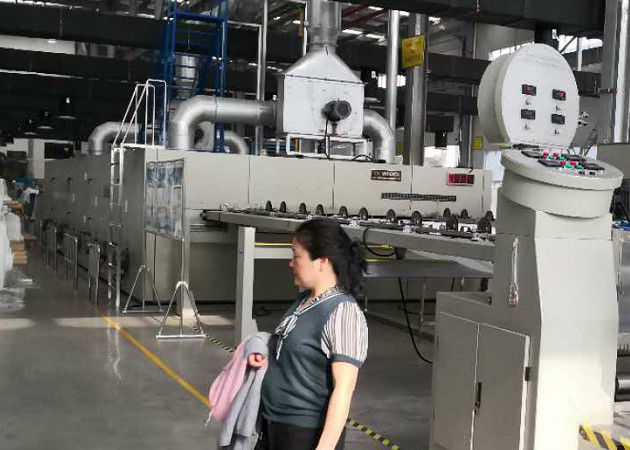

Humanized design heat setting stenter , good insulation , high evaporation







1. Stenter Application:

This machine is used for stretching, drying and setting the cotton, polyester,and man-made fabric.





2. Technical Flow:

Plaint Entry -- 2-Roller slant Padder -- Obligate Photoelectric Weft Strangtener – Overfeeding --  Edge Spreader, Infrared Edge Sensor -- Pin or Clip or Combied Pin-Clip -- Stentering and Drying in the Drying Chambers – Air Cooling -- Cooling Roller Cooling -- Swing Outlet.







3. Main features:



AC inverter speed control is used for the driving system so that upper and lower overfeeding, brush rolls and delivery roll can run synchronously with the main



Automatic and individual temperature control is realized for each chamber by imported temperature controller and precise electric control valve.



Speed control of chamber circulating fans is made by AC inverter, which is connected directly with inverter motors.



Effective sealing or insulation is ensured owing to the use of silicon rubber strips and other heat-resisting material for the walls and insulation doors.



Chain tension is controlled automatically by a pneumatic system.

Advanced all digit signaling system is employed to control and monitor the drives and temperature.



Trouble alarm and display as well as storage of processing paraments can be realized on the touch screen to facilitate operation.



Mechanical weft straightening and electronic weft straightening could be select by the buyer at additional charges.





4. Package & Delivery
(1) We use export standard package, wooden case to delivery machines, adopt necessary measures on moistureproof and anti-corrosion from air and sea.

(2) Packaging in all consideration to ensure machines are received in good state.

Customer satisfaction is our biggest goal.

(3) Virock textile finishing machines will delivery in 60 days after advanced payment received.



5. Payment
(1) Accepted Payment Type: T/T, L/C, Cash

(2) Accepted Payment Currency: USD, EUR, RMB

(3) Advanced payment: 15~30% as deposit.
