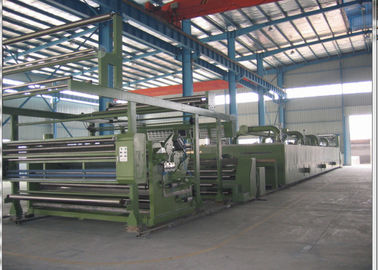

Multi - Functional Heat Set Textile Finishing Machine Guide Roller Diameter 125mm

China Multi - Functional Heat Set Textile Finishing Machine Guide Roller Diameter 125mm supplier

Large Image :  Multi - Functional Heat Set Textile Finishing Machine Guide Roller Diameter 125mm

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK-NM

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Wooden case
Delivery Time: in 90 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 4 sets per month
Contact Now
Detailed Product Description
Padder Type: Finishing/dyeing Chamber Length: 3m/4m
Fabric Hold By: Pin/clip/combined/belt Exhaust Motor Capacity: 5.5Kw
Exhasut Controlled By: Inverter Guide Roller Dia.: 125mm
Packing Standard: Export Packing Pin/clip Type: Monforts Type

Heat set Textile finishing Machine , Even temperature , Multi-functional





1. Product uses

This product is appropriate for polyester filament yarn, polyester low elasticity silk fabric, pure cotton or other knitting fabric with weight of 70-400g/m2.



2. Main technical index

Form: heated air circulation, single layer horizontal type

Vehicle category: left / right hand

Nominal width: 1600-3800mm

Amplitude modulation range(mm): 700-(Nominal width-200 mm)

Speed range: 5-100m/min

Over-feed ratio: -10% - +30

Heat source: heat-carrying oil, gas, electricity, saturated vapor, etc

Cloth holding method: needle clamp, cloth clamp, double use clamp

Cropping form: simple pendulum type; or double use

Edge detecting form: high precision infrared

Guide rail form: no lubricating oil lubricating oil guide rail

Installed capacity: (55+n×15)kW



3. Machine Features

1. High precision infrared edge detecting instrument, powerful antijamming capability;

2. 6mm thick steel plate graphite guide rail, no need of refueling, long serve life;

3. Multistage fabric width adjustment;

4. Front and back double multistage operation system, PLC control system, convenient for operation;

6. Frequency converting control, high efficient heated air circulation system;

7. Special nozzle displacement;





4.  Stenter chamber features:



1) Chamber equipped with double filters.

A suitable filter is provided just above the heat exchanger or in case of direct fired Natural Gas Burners, in the duct. The filter is easily accessible and can be cleaned standing outside the chamber while the machine is in operation. A second security filter is also provided.



2) Exhaust system.

The machine are provided with suitable quantity of exhausts to let out the moist and contaminated air efficiently from the chambers. The exhaust blowers are supplied with frequency controllers and moisture sensors to maintain uniform moisture and excellent drying results.



3) Heat recovery system.

The machine can be equipped with suitable heat recovery systems to pre-heat atmospheric air with the help of exhaust air, or to refeed into the stenter for higher temperature or to heat water to be used in processing machines or in boiler as feed water.
