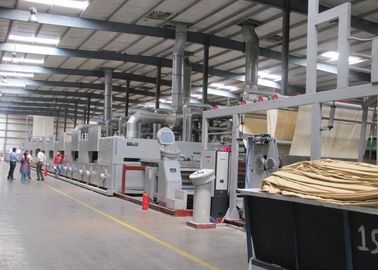

Open Width Textile Finishing Machine With Vertical Pin - Chain / Monforts Type

China Open Width Textile Finishing Machine With Vertical Pin - Chain / Monforts Type supplier
Open Width Textile Finishing Machine With Vertical Pin - Chain / Monforts Type supplier Open Width Textile Finishing Machine With Vertical Pin - Chain / Monforts Type supplier

Large Image :  Open Width Textile Finishing Machine With Vertical Pin - Chain / Monforts Type

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK-NB

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: polywood case
Delivery Time: 60-90 days
Payment Terms: L/C, T/T, D/A
Supply Ability: 4 sets per month
Contact Now
Detailed Product Description
Heating System: Oil/gas/steam/electricity/any Two Combined Fabric Working Width: 1200mm-3600mm
Chamber Quantity: As Required Padder Quantity: One/double As Required
Suitable For: Woven & Knits Etc. Circulation Motor Type: Anti High-temp.
Padder Type: Finishing / Dyeing Exit Type: Batching /Plaiting

Open width Textile finishing machine , Vertical pin - chain , Monforts type







1. Stenter chamber features:


1) Chamber equipped with double filters.

A suitable filter is provided just above the heat exchanger or in case of direct fired Natural Gas Burners, in the duct. The filter is easily accessible and can be cleaned standing outside the chamber while the machine is in operation. A second security filter is also provided.



2) Exhaust system.

The machine are provided with suitable quantity of exhausts to let out the moist and contaminated air efficiently from the chambers. The exhaust blowers are supplied with frequency controllers and moisture sensors to maintain uniform moisture and excellent drying results.



3) Heat recovery system.

The machine can be equipped with suitable heat recovery systems to pre-heat atmospheric air with the help of exhaust air, or to refeed into the stenter for higher temperature or to heat water to be used in processing machines or in boiler as feed water.





2. Technical data:



Roller width: 1400-3600mm Working width:

1200-3400mm



Heating source:

nature gas/ oil/ electricity/steam



Width adjustment range:

700-3400mm



Chambers No.



2-15 pcs Temperature of chamber:

100-230℃



Fabric held by:

clip/pin/combined



Air pressure: above 0.5mpa
Padder type

Finishing/Dyeing

Installed power:

Approx 140Kw
