Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V

Good quality Heat Setting Stenter for sales
I'm Online Chat Now

Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V

China Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V supplier
Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V supplier Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V supplier

Large Image :  Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001
Model Number: VK

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 60-90 days
Payment Terms: L/C, D/A, T/T
Supply Ability: 4 sets per month
Contact Now
Detailed Product Description
Heating System: Electricity Or Others Brand Of Touch Screen: Omron/Siemens Etc.
Brand Of Converter: Omron/Mitsubishi Etc. Brand Of Programmable Logic Controller: Mitsubishi/Omron
Brand Of Edge Controller: E+L Overfeeding: -10%-80%
Textile Hold Way: Optional Voltage: 380V/220V

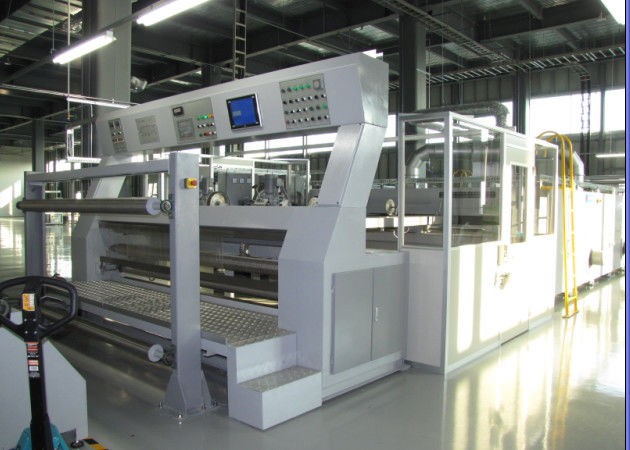

Textile hot air Heat Setting Stenter machine , simple entry , short exit







1. Main technical data:



Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75AC
Blower motor capacity 5.5Kw
Exhaust Two, Three or Four





2. Machine automation feature:



Imported Programmable logic range control (PLC):

● All fabric transport drives with frequency-controlled AC-drives.

● Control and monitoring instruments in the inlet and outlet area.

● Set-up automation for the operating parameters: production speed, fabric feeding, fabric overfeeding, stretching device, selvedge tensioning and air circulation, exhaust etc.





3.The stenter Controller characteristics:



Whole machine is PLC controlled. PLC programmable logic control can automatically control the completion of the whole setting process.  The man-machine dialogue operation layout can make the operator control the process flow easily, and it has a powerful menu system, which can automatically record all process parameters and storage process prescriptions, thus reducing the operating workload and ensuring the replay of various finishing processes, meanwhile reducing the production cost and improving the quality of the products.







Textile Electricity Heat Setting Stenter Simple Entry Short Exit 380V/220V
