Payment & Shipping Terms:
|Max. Temperature Of The Chamber:||230 Degaree||Heating System:||Gas Or Others|
|Normal Width:||Customized||Brand Of Burner:||Maxon|
|No. Of Chamber:||Optional||Garranty:||1 Year|
|Entry Rail Length:||6m||No. Of Exhaust Fan:||Optional|
|Minimum Overfeeding Width:||50mm||Drive Mode:||Full Inverter Controlled|
|HMI:||Siemens Or Mistubishi||Inverter:||Mitsubishi|
|Chain Type:||Horizontal, Non-lubrication||Minim Fabric Entry Width:||500mm|
stenter machine textile finishing machine,
cloth finishing machines

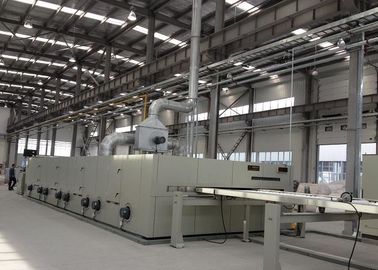

Gas heated 3-mesh textile finishing Stenter , Tension-free , customization
2. Functions of stenter machine:
1) Heat setting is done by the stenter for special 3-mesh textile.
2) Width of the 3-mesh textile is controlled.
3) Moisture of the 3-mesh textile is controlled.
4) GSM of the3-mesh textile is controlled.
5) Fabric is dried by the stentering process.
6) Shrinkage property of the 3-mesh textile is controlled.
Open width entry --- Infrared center device ---- J-scray ---- Padder --- Tension applicator --- Auto weft straightner ---- Expanding roller ---- Lower overfeeding screw expending ---Upper overfeeding --- E+L Edge detecting & two-finger uncurler device--- Clipping-on ---- Chambers for heat setting ---Air cooling --- Clipping-off ---- End section --- Plaiting & batching.
4. Feature advantages:
1) Special designed anti-pin off device to avoid the special fabric off pin in the chamber.
2) Many tension-free designs to meet some textile processing requirement.
3) Advanced Electrical Control system;all the electrical control components are used the international famous brand, such as Siemen/Mistubishi PLC and HMI, Mistubishi inverter, E+L selvedge tracing device and uncurler, Maxon Gas Burner etc.
4) Equipped with high Efficiency Heat Exchanger or Gas burner ( Maxon, USA), which quickly heat up the chamber temperature to the setting temperature, and greatly reduce the dull time and achieve production efficiency.
5) Special designed inner exhaust pipe enhanced the energy saving.
