Open Width Stenter Machine Textile Finishing Machine , Fabric Stenter Machine

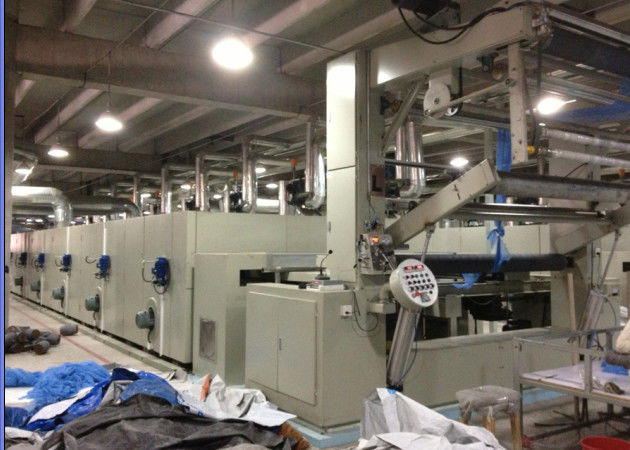

Large Image : Open Width Stenter Machine Textile Finishing Machine , Fabric Stenter Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	VIROCK
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	wooden case
Delivery Time:	90 days
Payment Terms:	T/T
Supply Ability:	as required

Contact Now

Detailed Product Description

Max. Roller Width:	3800mm	Operation Controller:	Computer Type/Bridge Type
Center Guider:	Infrared Type	Chemical Tuff Material:	SS
Chemical Tuff Size:	1 L	Padder Roller Diameter:	400mm
Padder Type:	Finishing Padder	Exit Type:	Plaiting/Batching
Highlight:	cloth finishing machines , fabric stenter machine

Open width textile stenter Machine , easy operation , good heat - retaining

1. Description:

Stenters are the heart of textile finishing.

Stenter is used for preventing distortion, obtaining dimensional reliability, wrinkle resistance and temperature resistance.

2.Technical specifications:

Roller width:	3600mm	Working width:	3400mm
Heat source:	nature gas	Width adjustment range:	700-3400mm
Chambers No.	6	Temperature of chamber:	100-220℃
Fabric held by:	clip/pin/combined	Air pressure:	above 0.5mpa
Overfeed range:	-10% to 30%	Installed power:	Approx 120Kw

3. Stenter features:

1) Hot Air Stenter Air Circulation
Unique Air Circulation System allows to control the process & fine tuning of process parameter providing best conditions for Heat setting, finishing, Drying, curing & coating application etc.

ADVANTAGES

The flow Air Circulation System, Separately controlled air flow for top & bottom nozzles.Higher efficiency Blower fan motors with lower energy consumption.Reproducible fabric results at any time.Stepless exact speed control of Chamber fan due to inverter driven motors.Ideal for delicate materials such as silk, knitted & pile fabrics.

2) CHAIN DESIGN

Special long term lubricated roller bearing chain ( required lubrication once a year or even later) with fully encapsulated ball bearing ,ensuring highest possible stretch , high operational speed with min. energy consumption available as pin chain, clip chain or combined pin & clip chain design.

BENEFITS

Running at higher speed (150mpm).Higher fabric stretch is possible.Low maintenance.Oil cups totally eliminated.Free from oil spillage.No possibility of staining of the fabric.No dropping , hence neat operations and clean surroundings.
