|Working Temperature Of The Chambers:||80-230 Degree||Chamber Heating System:||Gas/oil/steam/eletricity Or Two Of Them|
|Max. Fabric Working Width:||3800mm||Chamber Quantity:||2-15|
|Main Drive:||Single/double||Rail Length:||3m/6m/4m|
|Rail Type:||Horizontal||Cooling Type:||Air-jet Cooling/water-drum Cooling|
cloth finishing machines,
fabric finishing machine

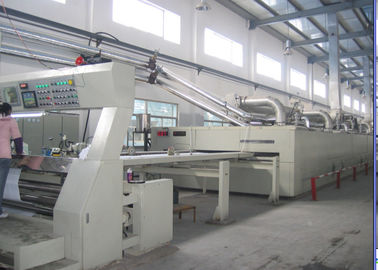

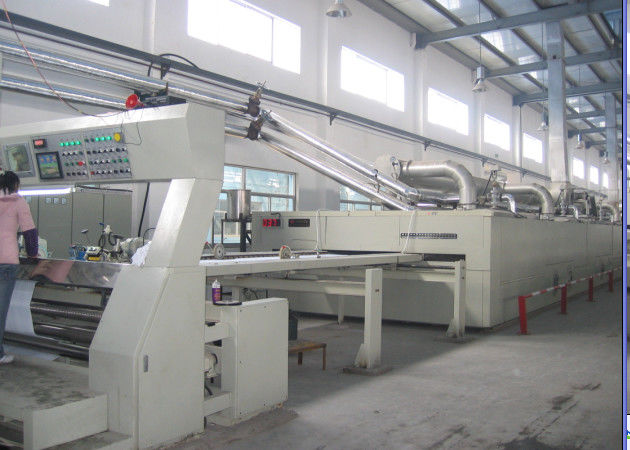

Auto operation Textile stenter machine , Big - size radiators , Even temperature
The stenter Features:
1. HEATING MEDIA
Direct Gas heating system: Easily accessible burner arrangement with optimum fresh air supply.Automatic burners with higher turn down ratio leads to energy saving.Indirect Thermic Oil heating system: Large heat exchanger surface areas for quick heating.Uniform heat transfer and lesser pressure drop across heat exchanger due to its unique design.PID controlled Motorised valves are offered for better temperature control and energy saving.Indirect Steam heating system : Large heat exchanger surface areas for quick heating (Optional).
2. NOZZLE SYSTEM
Specially designed nozzles for woven / knitted fabrics ensures uniform air flow distribution across the width.
Drawable nozzle system for easy cleaning.Cushioning effect for knitted & pile fabric.Even drying across the width.Highest possible production speed.
3. ENERGY SAVING
Special insulation panelling of high density material for low heat radiation, 150 mm thick insulation panels.
High Density insulation of 150 mm thickness for low heat radiation Ensuring proper sealing at all the chambers accesses, at entry and exits.
High productivity.Easy maintenance.Optimum utilization of energy.Very low radiation loss.
4. WIDTH ADJUSTMENT
Non lubricated width spindle driven by separate motor.
Any desired width can be adjusted automatically for entire machine from control desk.Digital width indication at the inlet, outlet area and mechanical width counter meter at each width spindle.Digital width indication at the inlet and outlet area .
