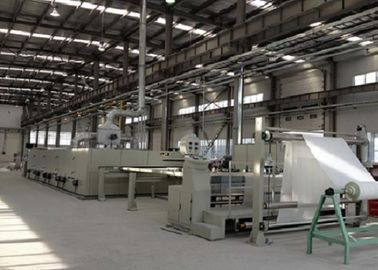

Plaiting / Batching Exit Type Heat Setting Stenter Slant Finishing Padder

Plaiting / Batching Exit Type Heat Setting Stenter Slant Finishing Padder
Plaiting / Batching Exit Type Heat Setting Stenter Slant Finishing Padder

Large Image :  Plaiting / Batching Exit Type Heat Setting Stenter Slant Finishing Padder

Product Details:

Place of Origin: CHINA
Brand Name: VIROCK
Certification: ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 90 days
Payment Terms: T/T
Supply Ability: as required
Detailed Product Description
Rail Lubirication Type: Non-lubrication Drive Mode: Full Inverter Controlled
No. Of Exhaust: 2/3 Sets Entry Rail Length: 3m/6m
Padder Rubber Hardness: Optional Padder Roller Diameter: 400mm
Padder Type: Slant Finishing Exit Type: Plaiting/Batching
High Light:

hot air stenter

,

stenter finishing machine

High - efficiency Heat Setting Stenter , good thermal insulation , energy saving







1. Textile Stenter Machine

Textile Stenter Machine not only provide the function of drying fabric,but also available of fabric width adjustment and control during drying process. Additionally, stenter execute several others functions as following:(1)Heat setting of synthetic fabric and blended fabric,such as polyester, spandex, CVC,T/C etc (2)application and fixation of chemical agents and liquids (3)to impart particular mechanical finishing afftecting fabric appearence and hand.




2. Main technical data:



Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm/150mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75 Kw
Blower motor quantity in each chamber 4pcs
Exhaust Two, Three or Four



3. Components of Stenter Machine:

Padder
Photoelectric Weft straightner
Burners
Heat recovery(Options)
Attraction rollers
Circulating fans
Exhaust fans
Winder
Clips
Pins
Cooling drums





4. Working Procedure of Stenter Machine

open-width fabric entry→ spreading→infrared centering→padder→ weft straightener →overfeed→uncurling→infrared detect→ pinning→stentering→air cooling→depinning→fabric exit→plaiting/winding
