Friendly HMI operation Rotary Screen Printing Machine , Open screen head
1. Description and application:
The rotary screen printing machine is a popular type printing machine. It is innovation of technology and reseach of the market. It suits to print the natural fiber, chemical fiber and other blended woven and knitting fabric.
2. Main features:
1) Open-type screen head. The screen is easy to be installed and dismantled.
2) Good rigidity magnetic table. The pressure of magnet rod is unlimited adjustable, which suitable for different weight fabrics.
3) Servo motor driving individually,register accurately and reliably.
4) Auto inspect and display malfunction, guide and check to deal with the malfunction quickly.

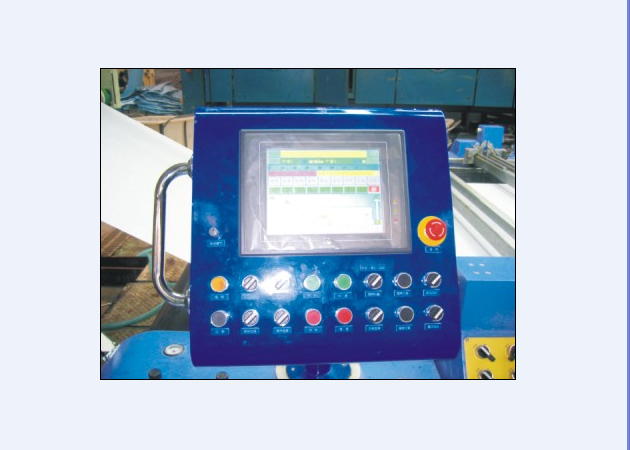

5) The friendly HMI operation system.
6) Screen frame can be lift up on the single side, which is convenient to clean and maintain.
7) High quality mechnical parts and electrical elements which purchased from the global market.
8) Residual paste returned device.
Fabric weight: 50g/㎡～600g/㎡
Printing width: 1200mm- 3200mm
Printing color: Max. 16 sets
Printing repeat: 640mm/820mm/914mm/1018mm/1168mm
Type of screen head driving: Individual driving
Register precision: ±0.1mm
Register adjustment rangeVertical: no limited
Drying mode: 3-layer fabric passing
Chambers of dryer: Optional
Heating source: Steam/thermal oil/ gas
Fabric-entry and exit mode: Open-width
