Payment & Shipping Terms:
|Packing Standard:||Export Standard||Painting:||Power Coating|
|Color:||Optional||Machine Design Type:||Monforts Type|
|Suitable Fabric:||Woven/knits/non-woven||Chamber Length:||4m/3m|
|Dryer No.:||2 To 15pc For Optional||Fabric Entry Way:||Open-width Entry|
heat setting stenter,
knitted fabric heat setting machine
Brand new Hot Air Stenter Machine , Non lubricated & horizontal rail , High speed
1. Main technical data:
|Padder type||Finishing padder|
|Padder roller material||NBR|
|Chamber No.||2-15 pcs for optional|
|Guide roller diameter||125mm/150mm|
|Heating source||Thermal oil/Natural gas/Steam/Electricity or any two combined|
|Entry rail length||3m/4m/6m|
|Blower motor capacity||5.5Kw/7.5Kw|
|Exhaust No.||Two, Three or Four|
2. Working process:

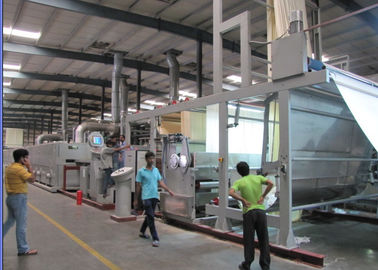

High fabric entry frame ----- J-scray with Cloth guider ---- Padder mangle with tension applicator --- Weft straightner ---- Expanding roller ---- Overfeeding with screw expending ---- Edge detecting device & uncurler device--- Clipping/pinning-on ---- Chambers for setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.
3. Machine Instrument Features:
1) The standard machine control system is with contactors and relays. The centralized operation system is provided on the operating box fixed on the entry box. The fabric speed is displayed on digital indicators placed at the first chamber. Two width indicating scales, indicating fabric width, are also placed on the entry and exit side.

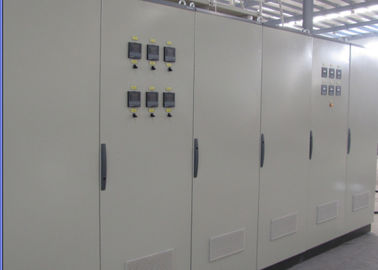

2) Temperature Indicating Controllers for each chamber are placed on the control panel along with the digital speed meter at the entry of machine. Temperature Recording Device, Meter Counter, Control valves for Oil, Steam or Gas Lines can also be supplied.
3) All required indicators for voltage, current, air pressure etc. are also included and fixed on the operating box equipped on the machine.
4) The machine with full automated set up, a PLC and a touch screen HMI are provided to control all machine operation parameters. The PLC is generally equipped with programmed software to ensure optimum production results.
